Specifications:
- Surface Diameter: 3.78" (96 mm)
- Thickness: 2.95" (75 mm)
- Height: 6.69" (170 mm)
- Material: Electroplated Iron
- Input Voltage: DC 12V
- Working Voltage: 12V
Speedometer:
- Tire Model: 120/80/17
- 34 Hz = 60 km/h
- Speed Up 5%: 34 Hz = 63 km/h
Fuel Gauge:
- LCD Display: F point 8Ω - E point 98Ω
Water Temperature:
- Below 165Ω, long indicator display
Standby Power Consumption:
- Main switch off, less than 4 mA
Button Function:
A. Short press the button to switch between total and subtotal.
B. In the total interface, press and hold for 4 seconds to switch between metric and imperial systems (default: metric).
C. In the subtotal interface, press and hold for 4 seconds to clear the subtotal.
Wiring Method (Round Head Line):
- Black: Electric switch positive pole
- Red: Battery positive (normally 12V positive)
- Gray: 6-gear 12V negative control, LCD display
- Green: 12V negative
- Blue/White: Oil signal
- Orange: Left turn, 12V positive control, LCD display
- Light Blue: Right turn, 12V positive control, LCD display
- Black/Red: Speed signal input
- Blue: High beam headlights, 12V positive control, LCD display
- Blue/Yellow: ABS, LCD display
Gear Line Group (6-Line Group):
- Green/Red: Neutral (N), 12V negative control, LCD display
- Pink: 1st gear, 12V negative control, LCD display
- Blue/Red: 2nd gear, 12V negative control, LCD display
- Green/Black: 3rd gear, 12V negative control, LCD display
- Yellow/Red: 4th gear, 12V negative control, LCD display
- Yellow/White: 5th gear, 12V negative control, LCD display
- Brown/Red: Engine fault light, 12V negative control, LCD display
- Green/White: Water temperature signal
Sensor Wiring Method (3-Wire Group):
- Red/White: Sensor positive
- Green: Sensor negative
- Black/White: Sensor signal

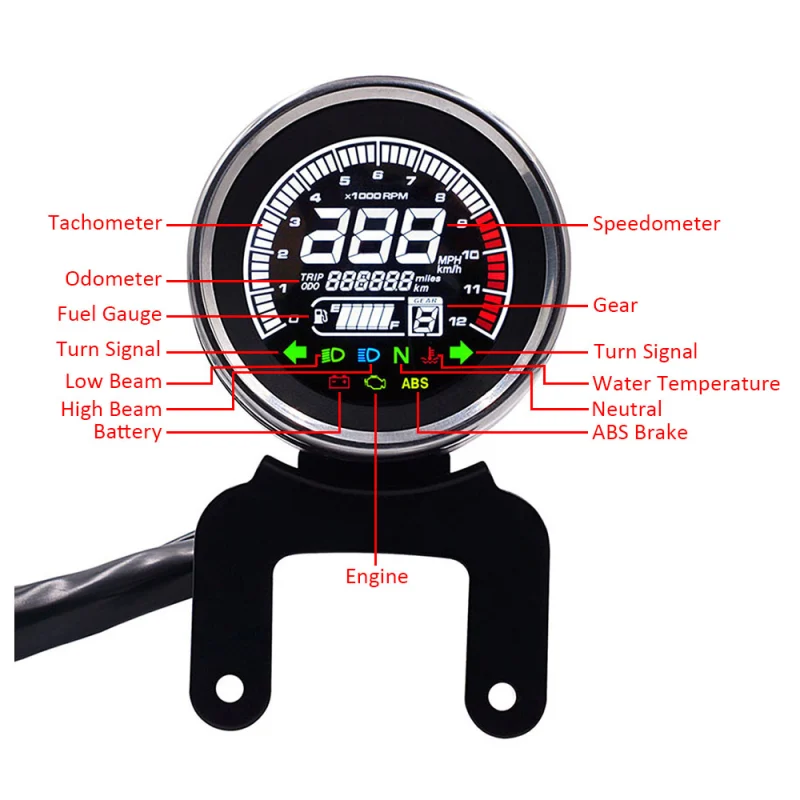

Display Type:
- Speedometer
- Tachometer
- Odometer
- Gear Position Light
- Low Voltage Warning Light
- Turn Signals Light
- Headlight Light
Package Included:
- 1 x Universal Motorcycle Gauge
Essential Guide to Cafe Racer Motorcycle GaugesWhen customizing a cafe racer motorcycle, one of the most important yet often overlooked components is the motorcycle gauge. These essential tools provide key information about your bike’s performance, allowing riders to monitor speed, RPM, fuel levels, and more. Choosing the right cafe racer gauge can enhance both the functionality and the vintage aesthetic of your bike.
Types of Cafe Racer Gauges1.Speedometers: A classic speedometer is a must-have for any motorcycle, especially a cafe racer. These gauges display the current speed, helping riders stay within legal limits while maintaining control over their bike. Available in both analog and digital speedometers, you can find models that suit the retro style of a cafe racer while offering modern precision.
2.Tachometers: A tachometer (or RPM gauge) is essential for tracking engine revolutions per minute. This gauge is particularly important for performance tuning and ensuring you’re not overworking the engine. Cafe racer tachometers come in minimalist designs that perfectly complement custom bikes.
3.Fuel Gauges: Running out of fuel is the last thing any rider wants. A reliable fuel gauge ensures you can keep track of your gas levels during long rides. Many custom bikes lack this feature, but installing a universal cafe racer fuel gauge can provide peace of mind without sacrificing style.
4.Combo Gauges: For those who want multiple functions in one unit, combo gauges offer a combination of speed, RPM, and fuel level indicators. These multi-functional motorcycle gauges save space on your dashboard, providing streamlined control in a sleek design.
Choosing the Right Cafe Racer GaugeWhen selecting the perfect motorcycle gauge for your cafe racer, consider factors such as durability, accuracy, and the overall design. Digital motorcycle gauges offer modern technology with a retro appearance, while mechanical gauges maintain the authentic vintage look. It's also important to choose waterproof and shock-resistant gauges for long-lasting performance.
Why Upgrade Your Cafe Racer Gauges?Upgrading to high-quality cafe racer motorcycle gauges enhances the riding experience by ensuring you have critical information at your fingertips. Whether you're tracking speed on open highways or monitoring RPM in urban settings, reliable gauges improve safety and functionality. Furthermore, a stylish retro gauge can add an authentic touch to the overall look of your bike.
Final ThoughtsMotorcycle gauges are essential for any cafe racer enthusiast looking to combine style with performance. From retro speedometers to high-tech digital tachometers, there's a wide range of options that can suit your build. Investing in the right gauges not only keeps you informed but also completes the unique, custom aesthetic of your cafe racer.
