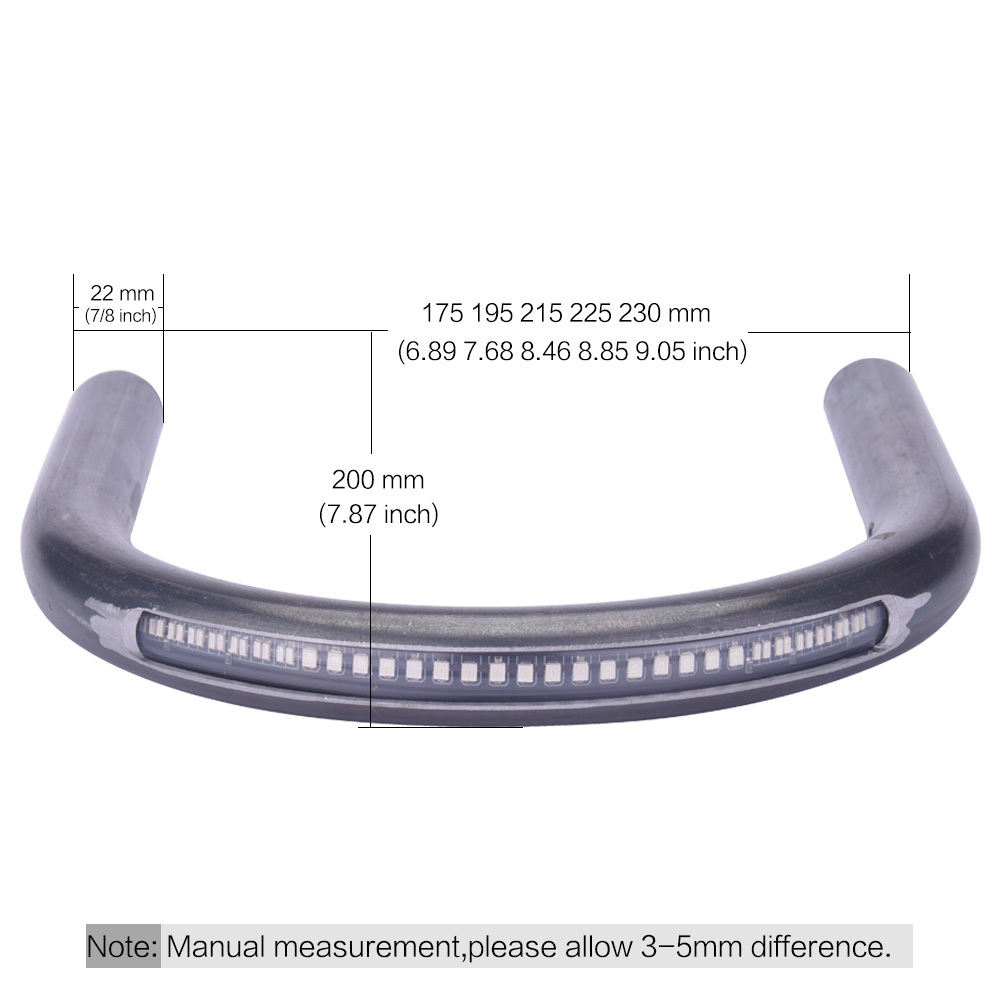

Specification:
-
Diameter: 7/8" (22mm)
-
Thickness: 0.07" (2mm)
-
Length: 7.87" (200mm)
-
Material: Raw steel (no paint)
-

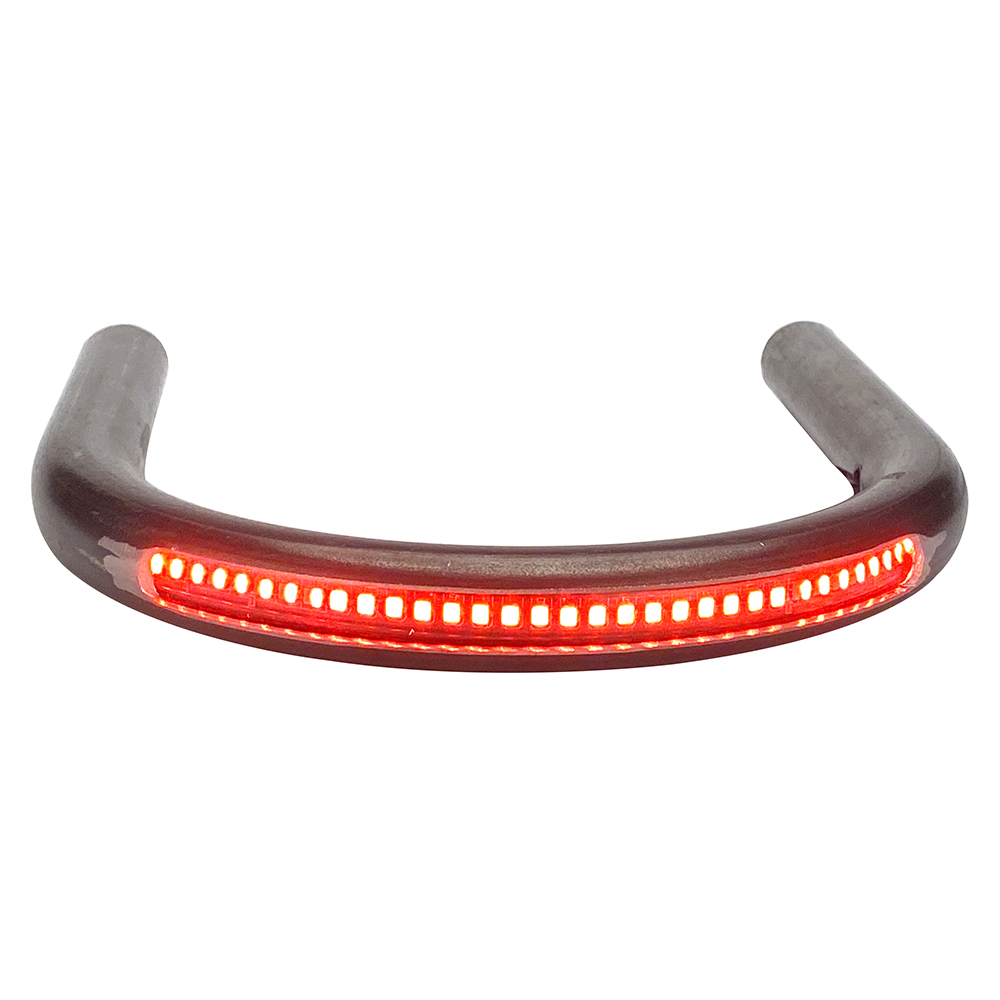

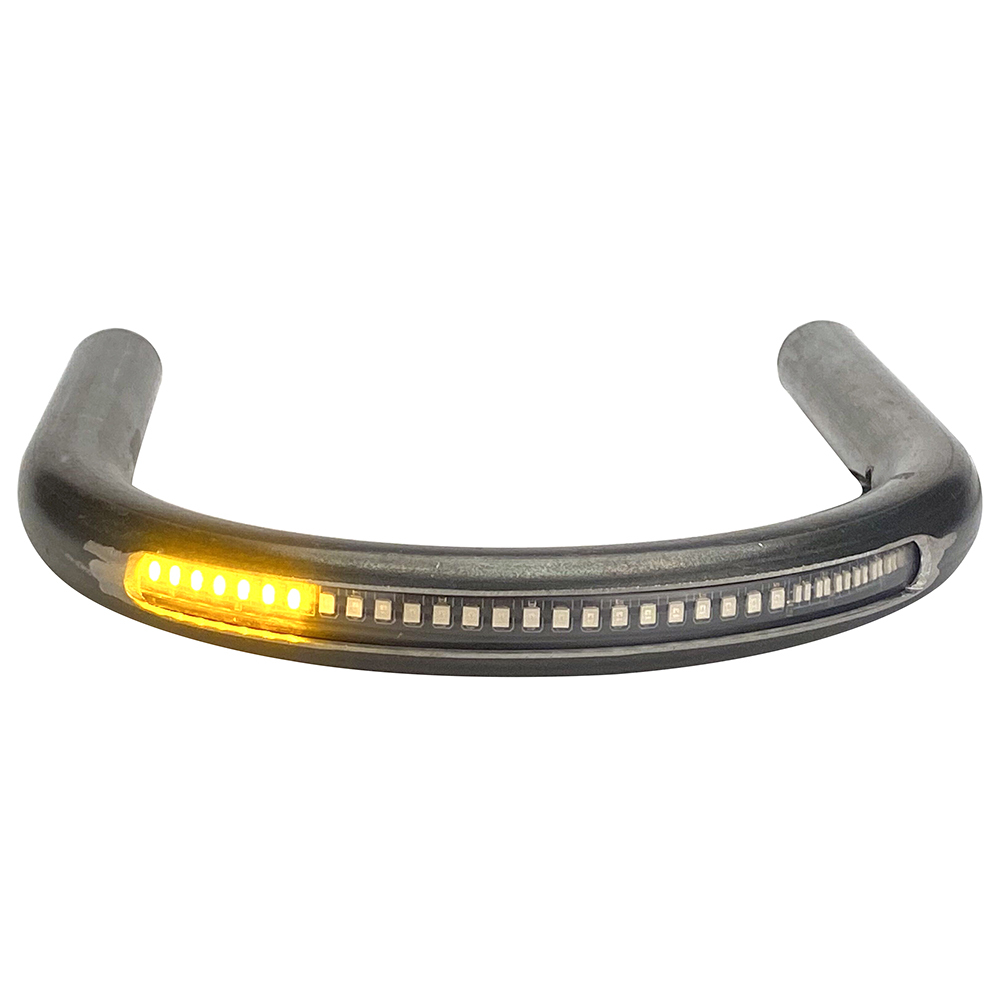

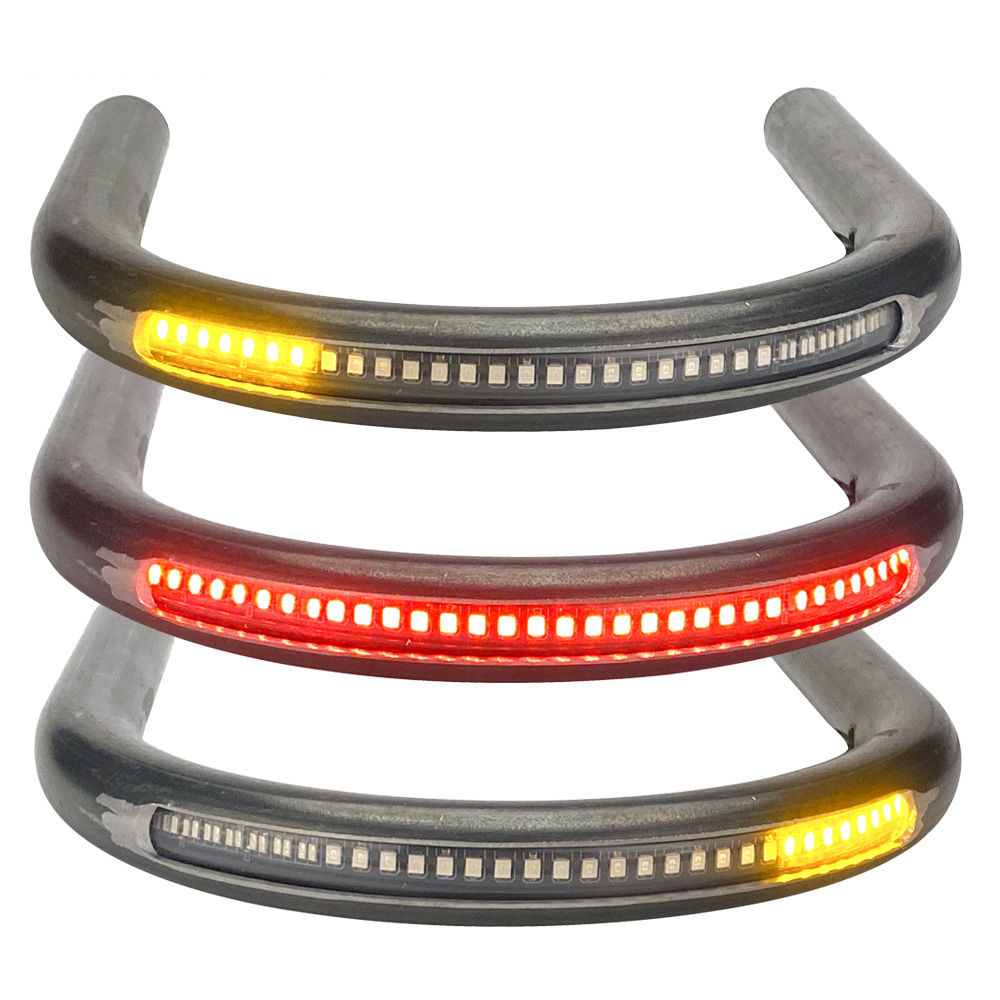

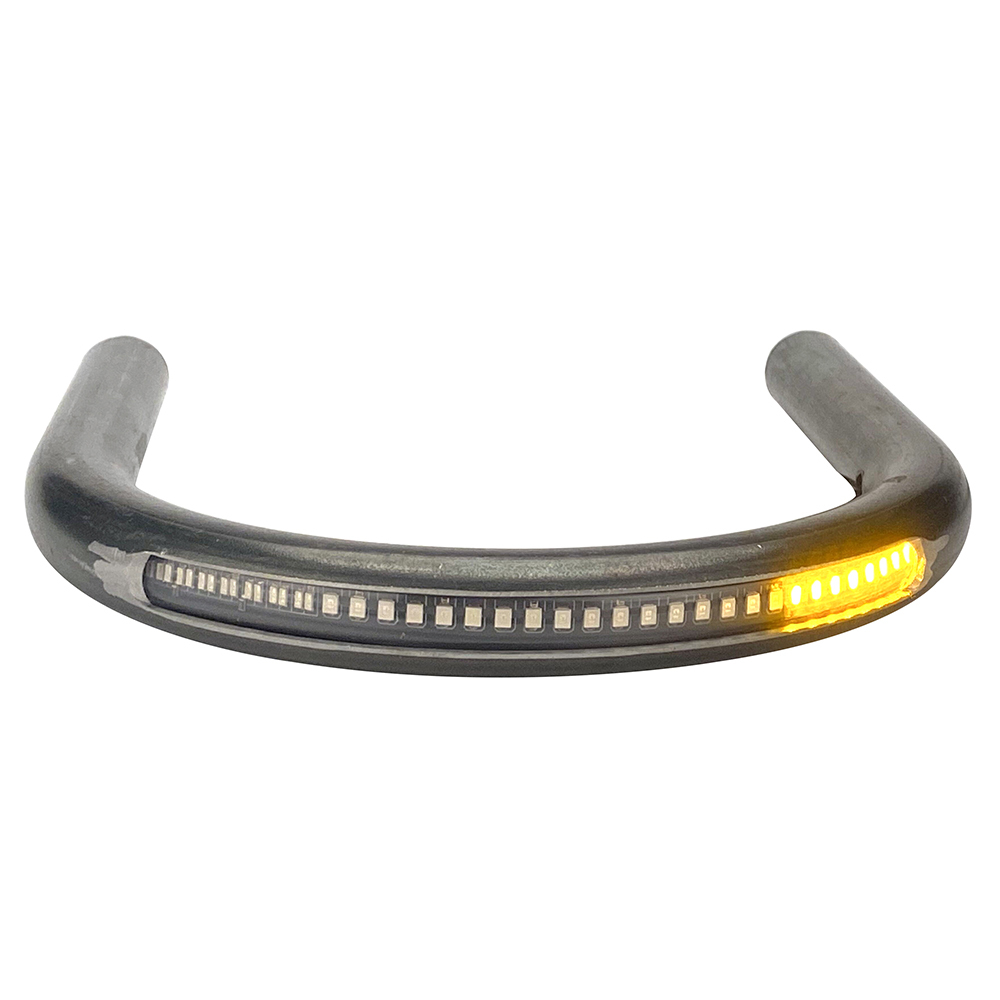

Light Type: Turn Signal Light, Daytime Running Light, Brake Light

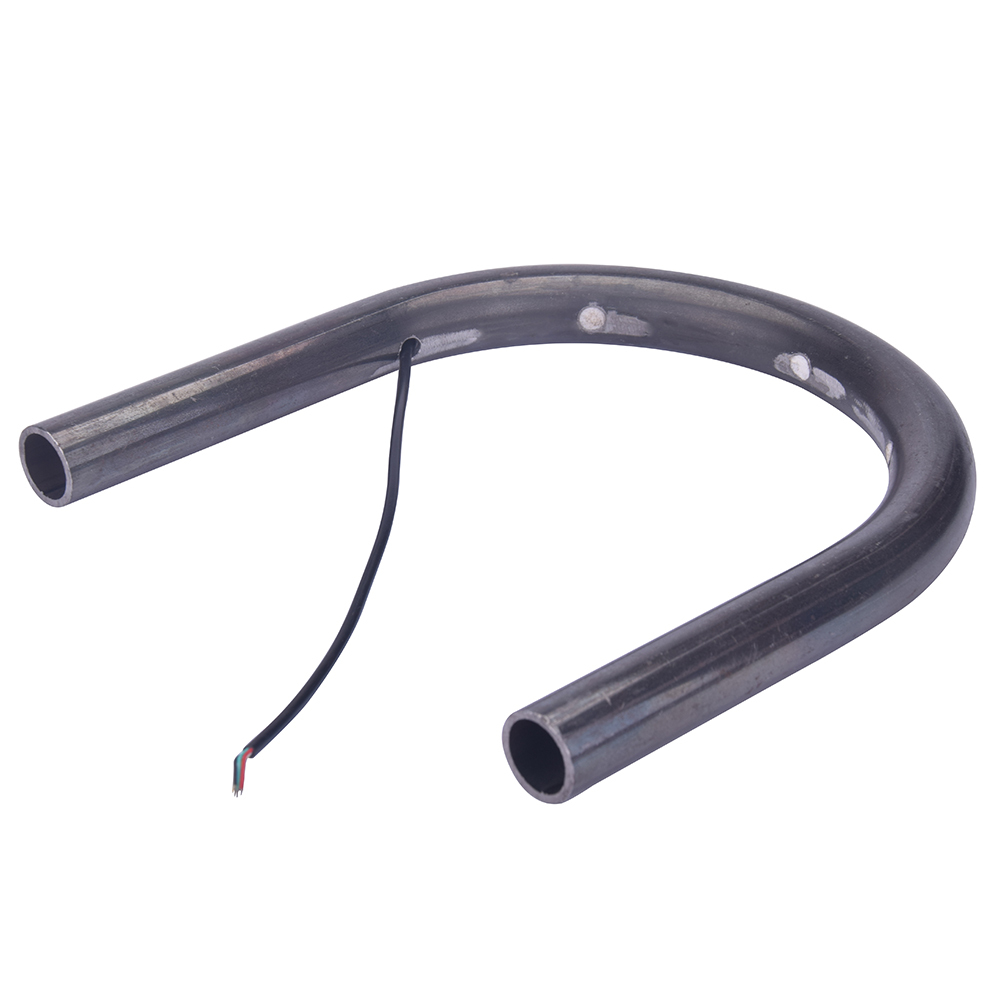

LED Light Wiring Instructions:
-
Black: Power supply negative
-
Red: Brake light
-
Blue: Right turning light
-
Green: Left turning light
-
White: Daytime running light
The Essential Guide to Cafe Racer SubframesWhen it comes to building a cafe racer, one of the most critical modifications is the subframe. The subframe not only defines the overall look and stance of your bike but also plays a functional role in ensuring a solid, comfortable riding experience. For anyone looking to transform a standard motorcycle into a sleek, vintage-inspired cafe racer, understanding the subframe is key. In this article, we’ll dive into what a subframe is, its importance in cafe racer builds, and how to choose or modify one for your project.
What is a Subframe?The subframe is the part of a motorcycle’s chassis that supports the seat, rear suspension, and sometimes the tail light and electrical components. It’s typically a smaller, detachable section of the frame located at the back of the bike. In a cafe racer, this component becomes especially important because it significantly affects both the aesthetic and functional characteristics of the bike.
Why Modify the Subframe for a Cafe Racer Build?Cafe racers are all about minimalist design and sleek, streamlined aesthetics. When converting a standard motorcycle into a cafe racer, the bulky, stock subframe doesn’t usually fit the look you're aiming for. Most standard motorcycle subframes are designed to carry a pillion seat or extra cargo, resulting in a wide, often unsightly tail section. A cafe racer, on the other hand, needs a shorter, cleaner line to complement its aggressive stance and nimble performance. This is why modifying the subframe is a common and essential step in cafe racer builds.
Key Considerations When Modifying a Cafe Racer SubframeIf you’re thinking about modifying or replacing your bike’s subframe for a cafe racer build, keep these important factors in mind:
1. Bike Model Compatibility Not all motorcycles are easily convertible into cafe racers. Some models, particularly those with large, bulky frames or odd geometries, may require extensive work to achieve the desired look. Research whether your bike model is commonly used for cafe racer projects and check if aftermarket subframe kits are available.
2.Legal and Safety Concerns Modifying the subframe affects the structural integrity of the motorcycle, so ensure that your modifications comply with local laws and safety standards. Always double-check that the new subframe can safely support the rider’s weight and the forces exerted during riding.
3.Seat and Suspension Fitment The subframe also supports the seat and rear suspension, so any modifications need to account for these components. Make sure your new subframe is designed to properly accommodate the type of seat and suspension you plan to use.
4.
Electrical Components Many motorcycles house electrical components (battery, ECU, wiring) beneath the seat or along the subframe. When cutting or modifying the subframe, you’ll need to relocate these components, so plan for a clean and secure solution.
Step-by-Step Guide to Modifying a Cafe Racer SubframeRemove the Old Subframe If your bike has a detachable subframe, simply unbolt it. If not, carefully cut the existing subframe at the points where it connects to the main frame. Always measure twice and cut once to avoid removing too much material.
Mock Up the New Subframe Before final welding, mock up the new subframe using clamps or tacking it in place with a welder. This allows you to check the fitment of the seat and ensure the new subframe maintains proper alignment with the bike’s geometry.
Weld the New Subframe Once you’re satisfied with the mock-up, complete the welding process.
It’s recommended to have a professional welder do this, as the subframe supports the rider’s weight and must be strong and secure.
(OVER HEATING WOULD BURN THE LIGHT STRIP INSIDE!)Install the Seat and Tail Light With the new subframe in place, you can now install your custom seat and tail light. Make sure everything lines up with the subframe and that all mounting points are secure.
Relocate Electrical Components If necessary, relocate your bike’s electrical components to fit within the new subframe. This may involve fabricating new mounts or containers for the battery, ECU, and other electronics.
ConclusionThe subframe is a pivotal part of any cafe racer build. Whether you opt for a pre-made bolt-on kit or decide to fully fabricate a custom subframe, getting the tail section right is essential to achieving the cafe racer look. Remember to prioritize safety and functionality, ensuring that your modifications not only look great but also provide a reliable and comfortable ride.
With the right approach, modifying the subframe can transform a standard motorcycle into a sleek, eye-catching cafe racer, capturing the spirit of vintage racing culture and modern custom craftsmanship.
